Content Templates

The aim of the Content Templates feature is to simplify the process of client systems sending data into Stroom. Instead of having to pre-create a Feed and Pipeline before a client can send data, Content Templates can be created to auto-create the content on receipt of the first Stream .

Content Templates are a set of expression rules with associated template content to generate when the rule matches on incoming data. If a client has used the correct headers and a Content Template matches, all the content required to process the data will be created and the data will be processed without any further involvement from the Stroom administrator.

In order to use Content Templates, the property appConfig.autoContentCreation.enable must be set to true.

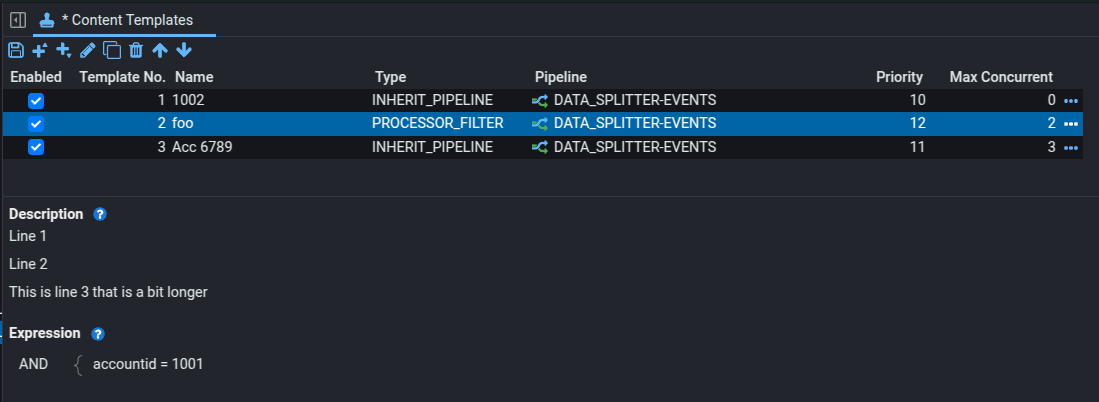

Content Templates Screen

Content Templates can be managed in the Content Templates screen that is accessed from the main menu:

---

This screen allows a user with the Manage Content Templates application permission to create a number of content templates.

The settings available on a Content Template are as follows:

Template Name

A name for the template to aid the administrator when looking through a list of different templates.

Descriptions

An optional and more detailed description of the purpose of the template.

Template Type

Determines how the Pipeline specified by the Pipeline setting is used.

• INHERIT_PIPELINE - A new pipeline will be created that inherits from the pipeline specified by Pipeline. The new pipeline will be created in the explorer tree folder defined by (app|proxy)Config.receive.destinationExplorerPathTemplate.

• PROCESSOR_FILTER - A new processor filter will be added to the existing pipeline specified in the template. No new documents will be created.

Copy Pipeline Element Dependencies

If Copy Pipeline Element Dependencies is ticked and the Template Type is INHERIT_PIPELINE, any documents that are direct dependencies of the specified Pipeline (e.g. Text Converter or XSLT ) will be copied into the destination folder. The new Pipeline will have its dependencies changed to use the copied dependencies, allowing them to be edited without affecting the parent Pipeline.

Pipeline

An existing Pipeline to either inherit from or add a processor filter to, depending on the Template Type.

Processor Priority

The priority to assign to the pipeline processor when created. The higher the number the higher the priority. Value must be between 1 and 100. The default priority is 10.

Processor Max Concurrent Tasks

The maximum number of concurrent tasks to assign to the pipeline processor when created. Zero means un-bounded.

Expression

Each template has an expression that will be used to match on the headers when auto-generation of content has been triggered. The template expressions are evaluated in order from the top, the first to match the data is used.

If a template’s expression matches, content will be created according to settings in the template.

Configuration

The configuration for the Content Templates can be found here.

Content Auto-Creation

Depending on the configuration and the settings in the Content Template that matches on the data, the following will happen if the feed does not already exist. If the feed already exists then it is assumed the content creation has already happened or has been done manually, so nothing will happen.

INHERIT_PIPELINE Mode

• Create a stroom user for the authenticated identity that has sent the data.

• Create a stroom user group using the template defined by property groupTemplate.

  • Add the created stroom user to this group.
  • Add this group to the group defined by groupParentGroupName.

• If Copy Pipeline Element Dependencies is ticked:

  • Create a stroom user group using the template defined by property additionalGroupTemplate.
    • Add the created stroom user to this group.
  • If additionalGroupParentGroupName is defined and doesn’t exist:
    • Create the Stroom user group specified in this property.

• Create an explorer tree folder using the template defined by property destinationExplorerPathTemplate.

  • Grant VIEW permission to the created group.
  • Grant VIEW permission to the created additional group.

• If Copy Pipeline Element Dependencies is ticked:

  • Create an explorer tree sub folder using the template defined by property destinationExplorerSubPathTemplate.
    • Grant VIEW permission to the created group.
    • Grant EDIT permission to the created additional group.

• Create a Feed in the folder defined by destinationExplorerPathTemplate.

  • Grant VIEW permission to the created group.
  • Grant VIEW permission to the created additional group (if Copy Pipeline Dependencies is ticked).

• Create a Pipeline in the folder defined by destinationExplorerPathTemplate and set it to inherit from the Pipeline defined in the Content Template.

  • Grant VIEW permission to the created group.

  • If Copy Pipeline Element Dependencies is ticked:

    • Copy the dependency documents of the parent Pipeline into this folder.
    • Grant VIEW permission to the created additional group.

  • Create a Processor Filter on the new Pipeline (using the priority and concurrency setting taken from the Content Template) with the following expression:

    Feed is X AND Type = Y

    [Where X is the Feed created above and Y is the stream type of the received data.]

• If groupParentGroupName is defined:

  • Create the Stroom user group specified in this property if it doesn’t exist.
  • Add the group defined by groupTemplate to this group.

• If Copy Pipeline Element Dependencies is ticked and additionalGroupParentGroupName is defined:

  • Create the Stroom user group specified in this property if it doesn’t exist.
  • Add the group defined by additionalGroupTemplate to this group.

Copy Dependencies Example

The following is an example of the content that will be created with the following assumptions:

• The Feed name is 1234-AV_SCANNER-XML-EVENT_LOGGING.
• AccountId: 1234 in the Meta data.
• Copy Pipeline Element Dependencies is ticked on the Content Template.
• Default autoContentCreation configuration.

Don’t Copy Dependencies Example

The following is an example of the content that will be created with the following assumptions:

• The Feed name is 1234-AV_SCANNER-XML-EVENT_LOGGING.
• AccountId: 1234 in the Meta data.
• Copy Pipeline Element Dependencies is NOT ticked on the Content Template.
• Default autoContentCreation configuration.

PROCESSOR_FILTER Mode

• Create a stroom user for the authenticated identity that has sent the data.

• Create a stroom user group using the template defined by property groupTemplate.

  • Add the created stroom user to this group.

• Create an explorer tree folder using the template defined by property destinationExplorerPathTemplate.

  • Grant VIEW permission to the created group.

• Create a Feed in the folder defined by destinationExplorerPathTemplate.

  • Grant VIEW permission to the created group.

• Create a Processor Filter on the new Pipeline (using the priority and concurrency setting taken from the Content Template) with the following expression:

  Feed is X AND Type = Y

  [Where X is the Feed created above and Y is the stream type of the received data.]

• If groupParentGroupName is defined:

  • Create the Stroom user group specified in this property if it doesn’t exist.
  • Add the group defined by groupTemplate to this group.

Example

The following is an example of the content that will be created with the following assumptions:

• The Feed name is 1234-AV_SCANNER-XML-EVENT_LOGGING.
• AccountId: 1234 in the Meta data.
• Default autoContentCreation configuration.

Expression Fields

When creating the expression in a Content Template, the user will be limited to a set of fields to match on. These fields will be matched against the meta data of the Stream. The list of fields that can be used are configured using the property .autoContentCreation.templateMatchFields.
